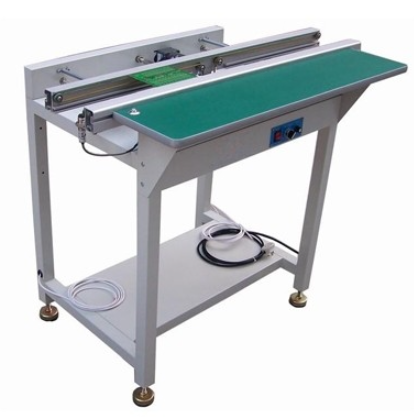

SC-1500
AT021486

HOLDING - CONVEYOR

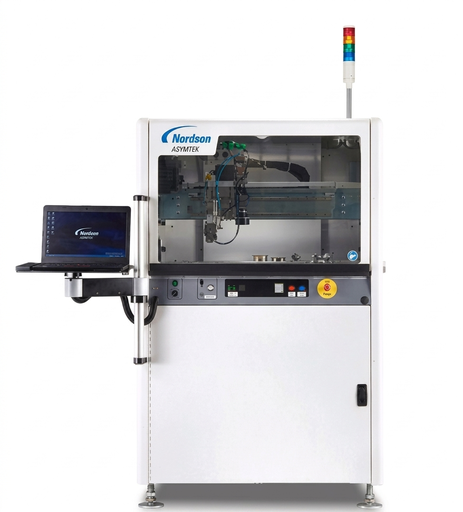

SL-940E
S22533

Inline Conveyorized
ASYMTEK Select Coat SL-940E Conformal Coating System

As a dependable coating partner for more than 35 years, we understand your time is valuable and that the equipment you select determines your products’ quality, cost, and reliability. The Select Coat® SL-940 Series provides the high-quality coating results and productivity you need for your automated batch or in-line process.

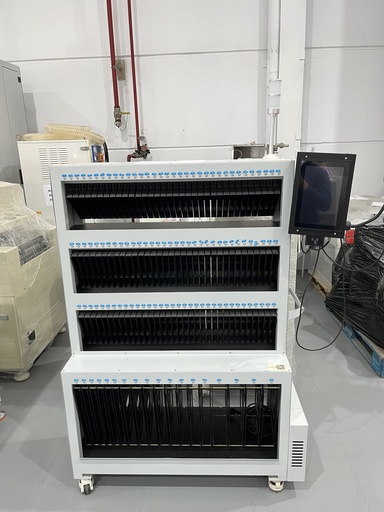

INTELRACK
AT021151

In addition to organization, visibility, and process reliability in handling your SMT feeders

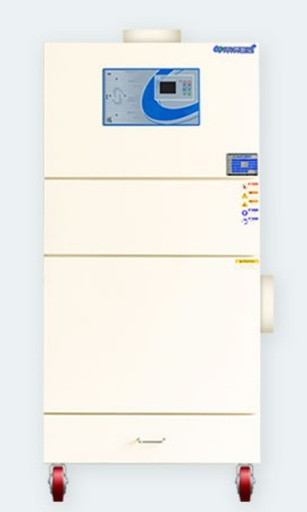

ASPIRADORA
AP-200/629

Air-pulse dust collector with easy filter management
Applications: Secondary battery process, mixing, powder feeding, sanding, bagging, PCB machining, metalworking, casting, blending, drilling, cutting, trimming, shredding, stone engraving, etc.

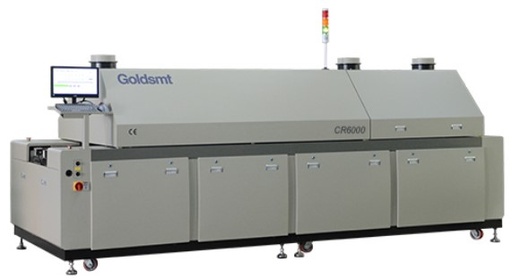

HORNO 6 ZONAS
AT080203

with rail and mesh, 350mm rail+mesh
400mm,PLC+Computer,Top&Bot:Air.
Direction: from left to right
Upper and lower independent temp control
Full screen profile display

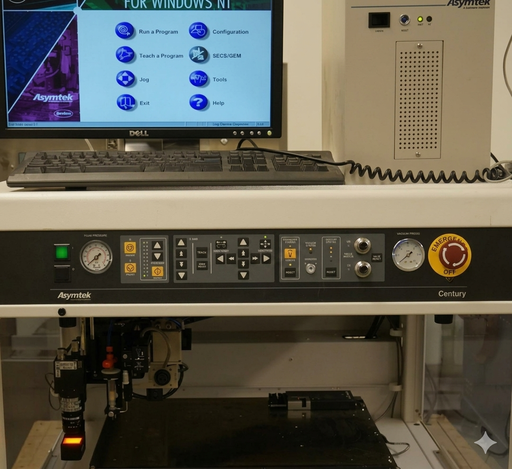

C-708
10582

The Nordson Asymtek Century C-708 Fluid Dispensing System is an automated benchtop fluid dispensing system used in electronic assembly and semiconductor manufacturing.

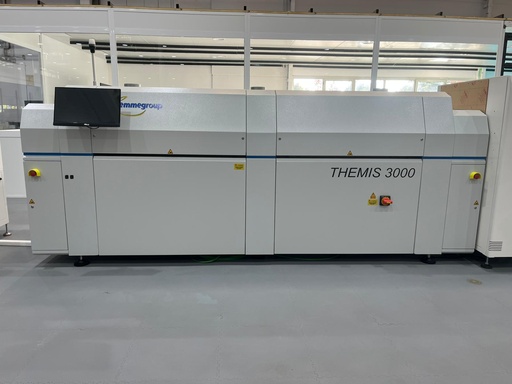

OVEN IR CURING THEMIS 3000 TOP
022AT2025

* Dimension: 3900 L x 1250 W x 1560 H
* Pcb Dimension: Min: 50 L x 50 W / Max 405 W mm
* Top/Bottom Max component height: 120 mm
* Control System: Omron PLC NX Series
* Control Panel: Color Touch Screen 21.5"
* Operating System: Dedicated software real time operation
* Tunnel composed of 6 top IR modules
* IR Tunnel Lenght 3210 mm
* Temperature Range Single Zone: Min 70 C° / Max 320 C°
* Chain conveyor Conveyor speed: 1-150 cm/min
* Manual adjustable conveyor width
* USB port and LAN Port for loading and unloading profiles
* Exahust: > 500 m3/h
* Power supply: 400V + 3PH + N + GND Power install: 14 Kw (Top IR) * Absorption: 29 A
* SMEMA Connected
* Weight: 1200 Kg Approx

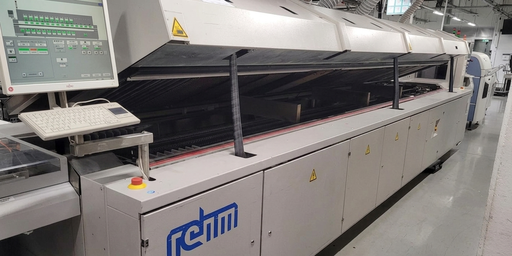

HORNO VXS NITRO 3500
4565

7 preheating zones
3 peak zones
4 cooling zones
chain transport
center support
transport direction: left - right
Smema interface

MSTKTU-450 SOLDERING
24U45005

SL-1040
S100120

SL-1040
S100011

With Select Coat SL-1040, we retained the time-tested functionality of the Select Coat SL-940 and added significant system-level advancements to enhance automation, control, accuracy, and preventative maintenance for improved performance and uptime.

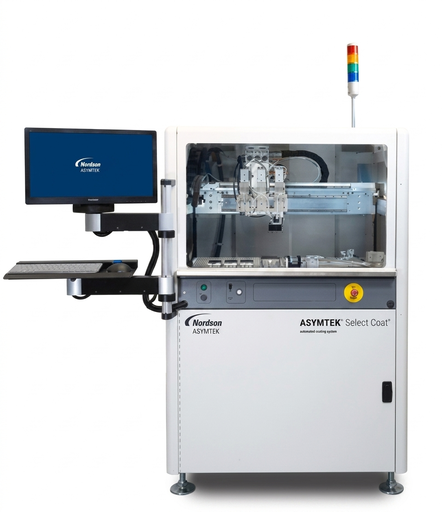

SL-1040
S100012

With Select Coat SL-1040, we retained the time-tested functionality of the Select Coat SL-940 and added significant system-level advancements to enhance automation, control, accuracy, and preventative maintenance for improved performance and uptime.

SP1-W
S5-0022-CB

±12.5μm at 6 Sigma
5 sec (Excl. Printing Time)
2 min
5 min
330 x 250mm
510(Length) x 460(Width)
50(Length) x 50(Width)
0,4mm to 4mm
1,500kg
Max. ±1.5mm (Excl. Board Thickness)
Left to Right
Right to Left (Option)
Automatic Width adjustment
3 Staged Conveyor. Front Stage, Working Stage, Rear Stage
By-Pass Conveyor (Option)
Edge Clamp + Top Stopper
Electric Clamp Force Regulating (Option)
PCB Vacuum (Option)
Back up Pins
Back up Block (Option)
Vacuum Block (Option)

Print Parameters
Speed: 0.1 ~ 20mm/sec
Distance: 0.2 ~ 3.0mm
Max. 200mm/sec
4 ~ 15kgf
Automatic
Screw + Electric Air Regulating
Single / Double Printing
Manual (Auto : Option)
Metal - 350mm, 250mm
650(Length)mm x 550(Width)mm
Vision
FOV - 10.6mm x 8.0mm
Circle, Triangle, Square, Diamond, Cross
0.5 ~ 4.0mm

Operator Interface
LCD Monitor, Mouse & Keyboard
Windows XP Embedded
Facilities
• Voltage : Single Phase. 220 / 240V (±5%)
• Frequency : 50/60Hz
• Power Consumption: 4.5 kVA
Pressure 4.5~7kgf/cm, Max. 700Nl/pm
1,895mm / 1,945mm (option). (Incl. Signal Lamp)
1,470mm
1,300mm
1,000mm
1,290kg

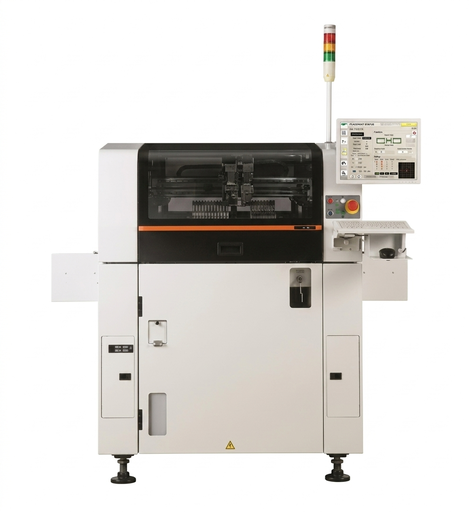

SP1-W
S5-0035-D7

±12.5μm at 6 Sigma
5 sec (Excl. Printing Time)
2 min
5 min
330 x 250mm
510(Length) x 460(Width)
50(Length) x 50(Width)
0,4mm to 4mm
1,500kg
Max. ±1.5mm (Excl. Board Thickness)
Left to Right
Right to Left (Option)
Automatic Width adjustment
3 Staged Conveyor. Front Stage, Working Stage, Rear Stage
By-Pass Conveyor (Option)
Edge Clamp + Top Stopper
Electric Clamp Force Regulating (Option)
PCB Vacuum (Option)
Back up Pins
Back up Block (Option)
Vacuum Block (Option)

Print Parameters
Speed: 0.1 ~ 20mm/sec
Distance: 0.2 ~ 3.0mm
Max. 200mm/sec
4 ~ 15kgf
Automatic
Screw + Electric Air Regulating
Single / Double Printing
Manual (Auto : Option)
Metal - 350mm, 250mm
650(Length)mm x 550(Width)mm
Vision
FOV - 10.6mm x 8.0mm
Circle, Triangle, Square, Diamond, Cross
0.5 ~ 4.0mm

Operator Interface
LCD Monitor, Mouse & Keyboard
Windows XP Embedded
Facilities
• Voltage : Single Phase. 220 / 240V (±5%)
• Frequency : 50/60Hz
• Power Consumption: 4.5 kVA
Pressure 4.5~7kgf/cm, Max. 700Nl/pm
1,895mm / 1,945mm (option). (Incl. Signal Lamp)
1,470mm
1,300mm
1,000mm
1,290kg

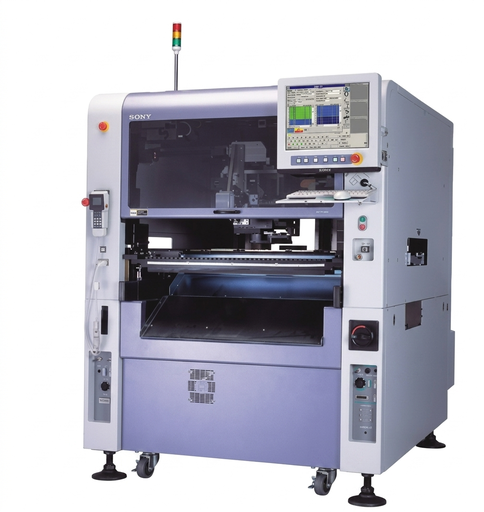

SI-F209
209741005

The Sony SI-F209 is a high-speed SMT pick and place machine designed to deliver precise, efficient, and stable component placement for modern PCB assembly lines. Based on Sony's proven high-speed assembly platform, the SI-F209 integrates an advanced vision alignment system, fast-moving placement heads, and a rigid mechanical structure to ensure consistent accuracy during continuous, high-throughput production. Supporting components from metric 0201 ultraminiature devices to medium-to-large-sized integrated circuits (ICs), BGAs, QFPs, connectors, and LED packages, the SI-F209 is suitable for both high-mix production environments and medium-to-high-volume SMT environments.

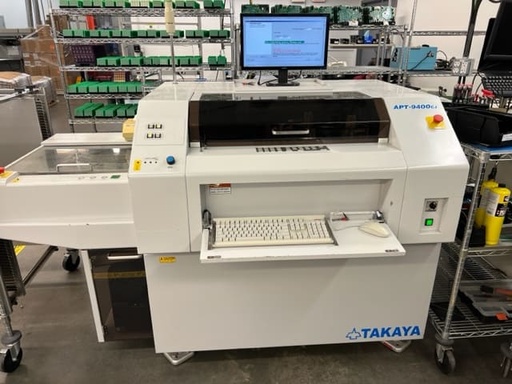

APT-9400CE-A
V2F0C103
The Takaya APT-9400CE-A is an advanced, high-precision flying probe tester manufactured. Takaya designed the APT-9400 series to deliver fixtureless electrical and mechanical testing for mounted printed circuit board (PCB) assemblies and electronic components

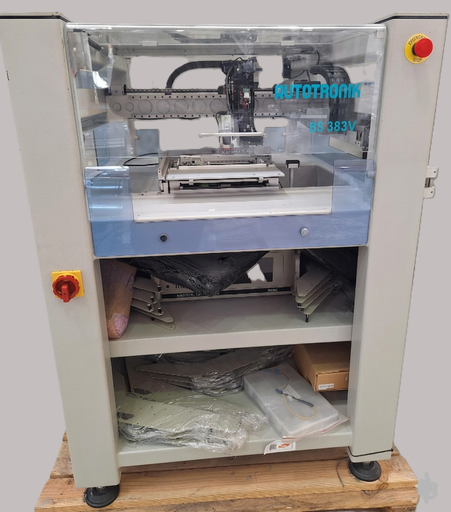

BS383V1-V
383N1V16V1046

- Fully Automated
- Windows 2000
- Ball Screw System
- Universal CAD Conversion
- Vision on the Fly Alignment System
- Bottom Vision Alignment System
- Built-in Camera System with Auto Fiducial Mark Learning

MU-560A-CT
CH1071901

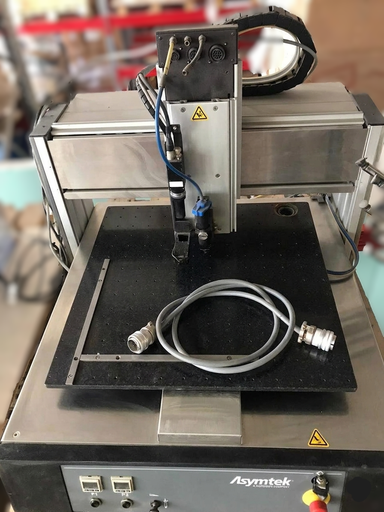

D-555
30359

The Nordson ASYMTEK D-555 is an automated, high-precision production system designed for PC board assembly, semiconductor packaging, and electronics manufacturing. It integrates dispensing, jetting, and coating capabilities into a single platform to apply fluids like adhesives, solder pastes, and encapsulants.

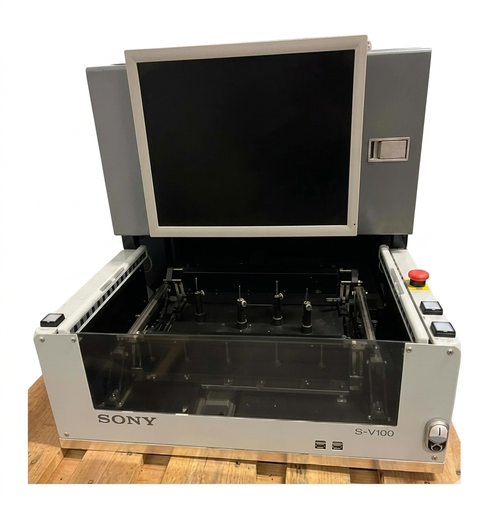

SI-V100
CD0134012
